產品編號：A100031
Hydraulic Crimping Machines

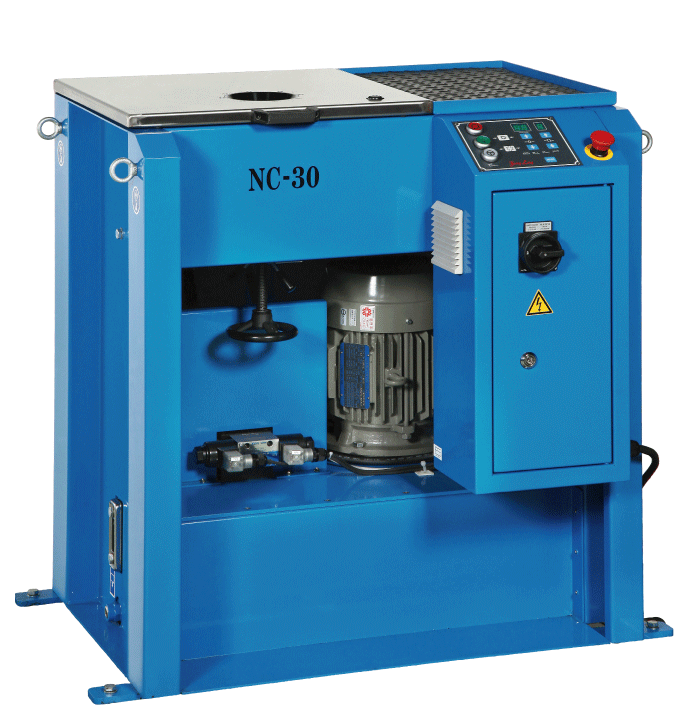

Nut Crimping YL-NC-30
NC20 and NC-30 are applicable for the fastening and pressing vary kind of nuts and ferrules. The scope of crimping diameter range from 4mm~2 inch, these two set of nut crimpers both have efficiency and accurate functions to meet different clients need.
TECHNICAL DATA
| 最大扣壓管徑 | Max Hose Size | 2" |
| 扣壓範圍 ( mm ) | Crimping Range ( mm ) | ψ4…ψ82 |
| 模具型號 | Die Type | NC20/NC30 |
| 模具擴張度 | Max. Opening ( mm ) | +26 |
| 主要模具長度 | Master Die ( Die / Length ) | 22 / 40 |
| 馬達 ( kW ) | Motor ( kW ) | 3.6 |
| 電壓 ( V ) | Voltage ( V ) | 220 / 440 |
| 泵浦 ( l /min ) | Pump ( l /min ) | 11.5 |
| 扣壓力 ( kN ) | Crimping Force ( kN ) | 740 |
| 扣壓量 ( 每小時 ) | Crimpings Hour | 2000 |
| 噪音值 ( dB(A) ) | Noise level ( dB(A) ) | 71 |
| 保護等級 | Protection Class | IP54 |
| 尺寸：長 ( mm ) | Size : Length ( mm ) | 685 |
| 寬 ( mm ) | Width ( mm ) | 1000 |
| 高 ( mm ) | Height ( mm ) | 940 |
| 重量 ( kg ) | Weight ( kg ) | 340 |
STANDARD DIES SET SPEC
| Code | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 |
| Dimension | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 |
| Crimping Range | 12-14 | 14-16 | 16-19 | 19-22 | 22-26 | 26-30 | 30-34 | 34-39 |
| Length | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Code | NC20 | NC20 | NC20 | NC20 | NC30 | NC30 | NC30 | |
| Dimension | 39 | 45 | 52 | 57 | 64 | 69 | 74 | |
| Crimping Range | 39-45 | 45-52 | 52-57 | 57-66 | 64-69 | 69-74 | 74-78 | |
| Length | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
ACCESSORY
-
-
Foot Pedal (B)腳踏開關(B)
-
