產品編號:A100011

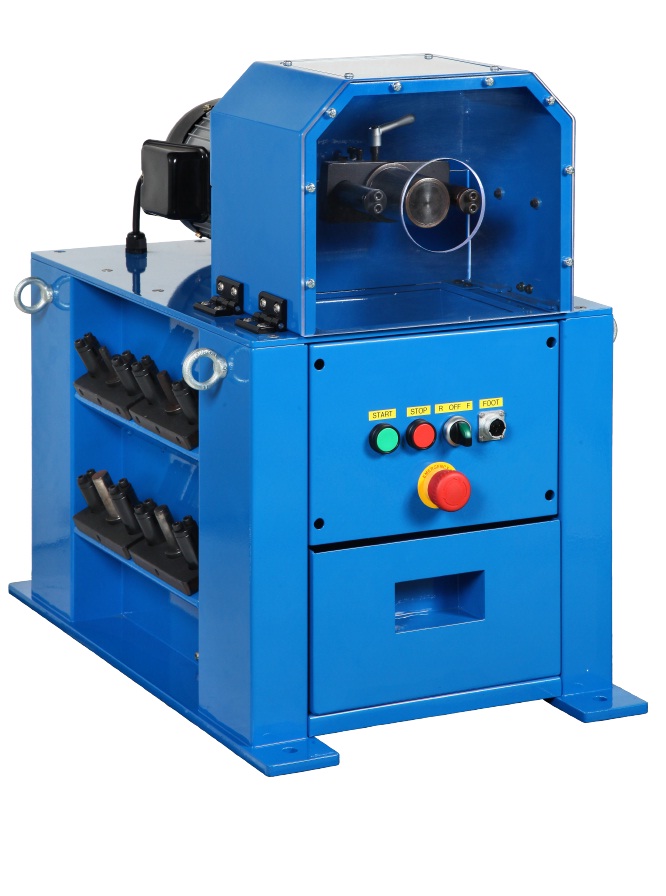

Hose Skiving Machine
SK-16
Our SK-16 are commonly used in the manufacturer who have own hydraulic hose business or the store of offering hydraulic hose. SK-16 have dual symmetrical skiving blade that can balance and cut simultaneously from two sides of the hose. The scope skiving range from 1/4 to 2 inch 4 wire, and you can freely adjust skiving distance you want.
SK-16 削皮機此機型最常被用在擁有油壓管事業的廠家或五金行店家友在提供油壓管。SK-16有著雙邊對稱削皮刀具,並可以同時非常均勻削兩邊的油壓管。削皮尺寸可從1/4至2英吋4層,從客戶上的不同需求而做削皮尺寸的調整。
TECHNICAL DATA
最大管徑 | Max Hose Size | 2''-4SP |
外部削皮 |
External Skiving |
1/4, 3/8, 1/2, 5/8, 3/4, 1'', 1-1/4, 1-1/2, 2'' |
內部削皮* 另選購 | Internal Skiving *Optional | 3/4, 1'', 1-1/4, 1-1/2, 2'' |
馬達(kW) | Motor (kW) | 0.4 |
電壓 (v) | Voltage ( v ) | 220 / 380 |
轉速 | Rotation Speed | 233 / 284 |
尺寸:長 ( mm ) | Size : Length ( mm ) | 500 |
寬 ( mm ) | Width ( mm ) | 660 |
高 ( mm ) | Height ( mm ) | 650 |
重量 ( kg ) | Weight ( kg ) | 110 |
SKIVING TOOL
1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1'' | 1-1/4 | 1-1/2 | 2'' |
ACCESSORY
- Foot Pedal (B)腳踏開關(B)
