產品編號：A100009
Hydraulic Crimping Machines

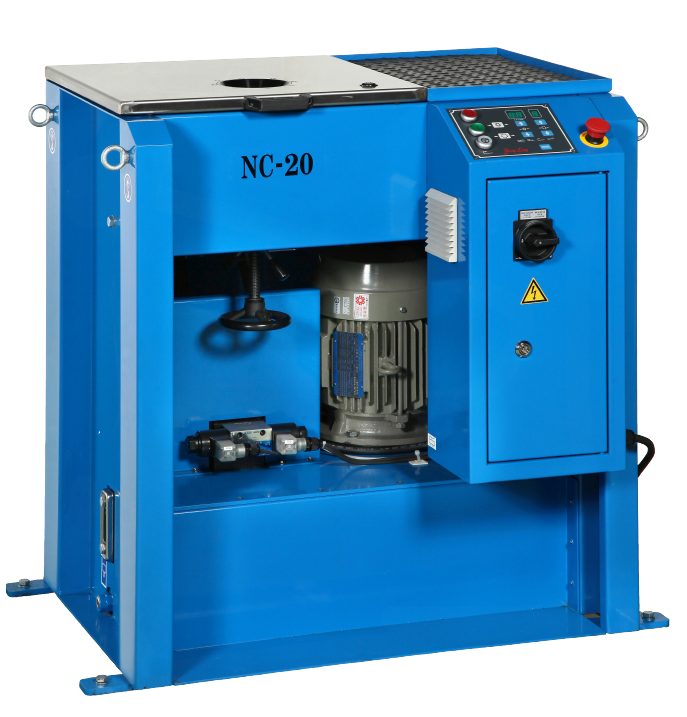

Nut Crimping YL-NC-20
NC20 and NC-30 are applicable for the fastening and pressing vary kind of nuts and ferrules. The scope of crimping diameter range from 4mm~2 inch, these two set of nut crimpers both have efficiency and accurate functions to meet different clients need.
NC-20和NC-30可被應用在多種固定和壓合的螺母、套圈。扣壓範圍從4mm到2英吋。這兩種類型螺母扣壓機同時都具有著機器扣壓效率和精準的數值功能，並且可以依照客戶不同的需求來進行扣壓。
TECHNICAL DATA
| 最大扣壓管徑 | Max Hose Size | 11/4" |
| 扣壓範圍 ( mm ) | Crimping Range ( mm ) | ψ4…ψ65 |
| 模具型號 | Die Type | NC20 |
| 模具擴張度 | Max. Opening ( mm ) | +20 |
| 主要模具長度 | Master Die ( Die / Length ) | 22 |
| 馬達 ( kW ) | Motor ( kW ) | 3.6 |
| 電壓 ( V ) | Voltage ( V ) | 220 / 440 |
| 泵浦 ( l /min ) | Pump ( l / min ) | 11.5 |
| 扣壓力 ( kN ) | Crimping Force ( kN ) | 500 |
| 扣壓量 ( 每小時 ) | Crimping Hour | 2100 |
| 噪音值 ( dB(A) ) | Noise level ( dB(A) ) | 71 |
| 保護等級 | Protection Class | IP54 |
| 尺寸：長 ( mm ) | Size : Length ( mm ) | 685 |
| 寬 ( mm ) | Width ( mm ) | 1000 |
| 高 ( mm ) | Height ( mm ) | 940 |
| 重量 ( kg ) | Weight ( kg ) | 300 |
STANDARD DIES SET SPEC
| Code | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 | NC20 |
| Dimension | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 |
| Crimping Range | 12-14 | 14-16 | 16-19 | 19-22 | 22-26 | 26-30 | 30-34 | 34-39 |
| Length | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Code | NC20 | NC20 | NC20 | NC20 | ||||
| Dimension | 39 | 45 | 52 | 57 | ||||
| Crimping Range | 39-45 | 45-52 | 52-57 | 57-66 | ||||
| Length | 5 | 5 | 5 | 5 |
ACCESSORY
-
Foot Pedal (B)腳踏開關(B)
